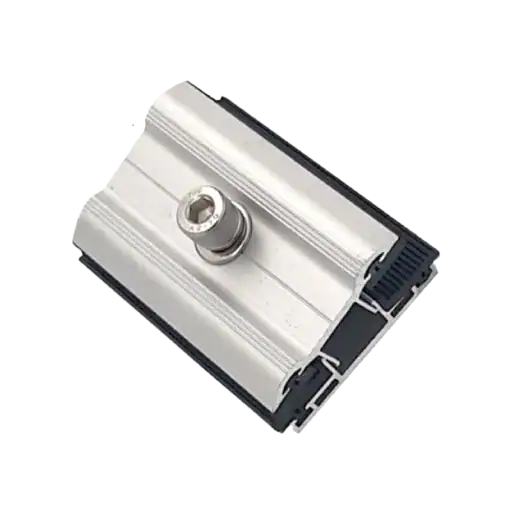

Mid Clamp ThinFilm | C0104-GN032-30 - Năng Lượng Mặt Trời XB Solar

Specifications:

Model: C0104-GN032-30
Origin: China
Material: Anodized Aluminum (AL6005-T6) + Stainless Steel 304 screw
Quality Certification: Japan JIS C 8955: 2011; Australia AS/NZ1170.2: 2011

Manufacturer Information:

ANTAISOLAR was established in 2006 in Fujian, China, and the company owns 2 aluminum extrusion manufacturing plants covering an area of 213,333 square meters.

Manufacturing Process: ANTAISOLAR operates a fully integrated aluminum production line from melting, casting, molding, to anodizing, allowing them to completely control product quality from the very beginning.

Quality Control:

* Dedicated laboratory facilities at the factory conduct various tests such as durability, tensile strength, salt spray, and material analysis. From raw material casting to final packaging and transportation, each stage undergoes sample testing in the laboratory.
* Quality Control department ensures that all goods are inspected before delivery. The laboratory for raw materials is equipped with modern equipment along with a skilled R&D team, helping us maintain our position as a leading supplier of solar frame systems worldwide.
While other manufacturers still use standard AL6005-T5 aluminum, all our products adhere to the AL6005-T6 standard.

Technical feature comparison table:

Standard	Tensile Strength (MPa)	Yield Strength (Mpa)	Elongation (%).
Antai 6005-T6	295	263	10%
6005-T6 Standard	255	215	6%
6005-T5 Standard	250	200	7%
