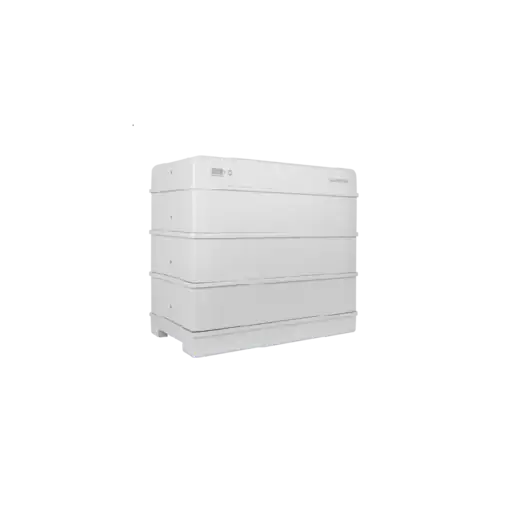

SUNGROW Solar Energy Storage Battery 9.6 kWh | SBR096

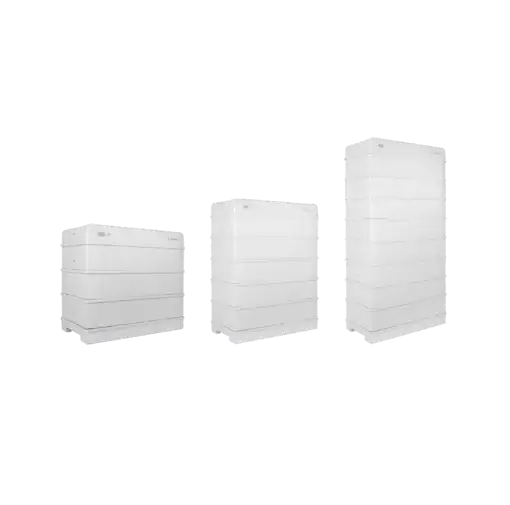

Officially distributed in Vietnam by XBSolar Joint Stock Company, the latest product from Sungrow is well-suited for energy storage needs in residential rooftop solar systems. It offers flexible connectivity, supporting the combination of 3-8 modules per unit, with scalability up to 4 units in parallel, providing a wide storage range from 9.6 to 102.4 kWh. The system boasts extremely high efficiency, with up to 100% usable energy and a maximum charge and discharge current of 30A.
Developed specifically for residential households
It optimizes energy consumption and maintains system stability. Along with the Hybrid inverter, it allows for efficient energy management, reducing dependence on the grid.
Hybrid Energy Storage Solution
A grid-tied solar power system with storage uses a Hybrid inverter and LFP (Lithium Iron Phosphate) batteries to store energy. It provides a stable power supply for critical loads (such as cameras, refrigeration systems, computers, etc.) that require continuous power. Excess energy is stored during the day for use at night or during power outages.
Design
Lightweight and compact, it offers flexible installation that can be done by a single person.
Plug-and-play design with wireless module connections, seamlessly connecting to the Hybrid inverter.
Integrated with advanced protection features
Overvoltage, undervoltage, overcurrent, overheating/low temperature protection, and DC circuit breaker enhance system reliability and safety. Complies with safety regulations and certifications including CE, CEC, IEC 62619, IEC 62040, JIS C 8715-2, UN38.3.
Technical Specifications :
|
Product Code |
SBR096 |
|
Technical Specifications |
3 modules |
|
System Specifications |
|
| Battery Type |
LiFePO4 (Lithium Iron Phosphate Battery / LFP) cylindrical cell |
| Battery Module |
3,2 kWh, 33 kg, 625*130*330 mm (Width x Height x Length excluding handles) |
| Usable Energy |
9,6 kWh |
| Rated Voltage |
192 V |
| Operating Voltage Range |
168 – 219 V |
| Maximum Charge/Discharge Current (Continuous) |
30 A |
| Maximum Charge/Discharge Current (10-second Pulse) |
42 A |
| Display |
State of Charge (SOC) indicator, status indicator |
| Communication Interface |
CAN (Control Area Network) |
|
|
|
|
Protection |
|
| Overvoltage/Undervoltage Protection |
Yes |
| Overcurrent Protection |
Yes |
| Overheating/Low Temperature Protection |
Yes |
| DC Circuit Breaker |
Yes |
|
|
|
|
General Specifications |
|
| Dimensions (Width x Height x Length) |
625 * 545 * 330 mm |
| Weight |
114 kg |
| Installation Location |
Indoor / Outdoor |
| Mounting Method |
Floor-standing (standard) |
| Operating Temperature Range |
Charging: 0 – 50℃ |
| Protection Level |
IP55 |
| Allowed Relative Humidity Range |
0% – 95% (non-condensing) |
| Maximum Operating Altitude |
2.000 m |
| Cooling Method |
Natural convection |
| Certifications |
CE, CEC, IEC 62619, IEC 62040, JIS C 8715-2, UN38.3 |
| Warranty |
10 years |
| Expandability |
Up to 4 parallel installations (requires additional junction box) |
