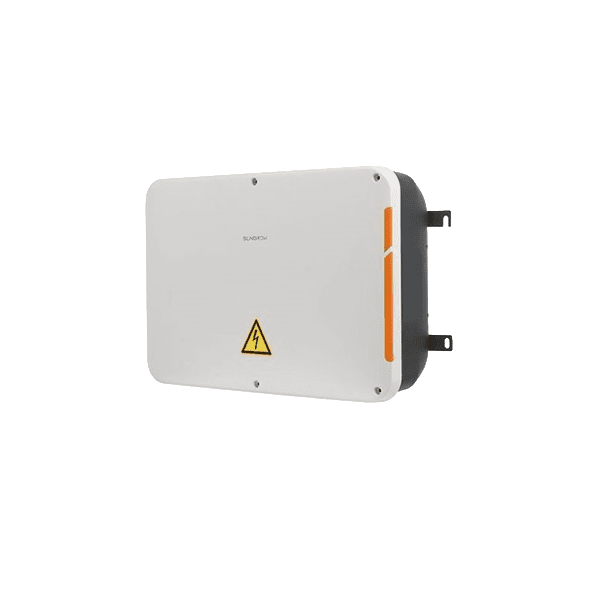

DATA LOGGER COM100E Sungrow – Communication Device
The smart communication cabinet supports all RS485, Ethernet, and Wi-Fi connections for transmitting information from connected devices to the Cloud and allowing users to monitor the system directly through the Isolarcloud software, available on both smartphones and the website (https://www.isolarcloud.com.hk/).
- With its robust and lightweight casing, weighing just 6 kg, installing the Sungrow Com100E Data Logger becomes easy and straightforward. It supports various energy meters, weather monitoring devices, sensors, and other equipment. Maintenance of solar power plants is facilitated through remote web access to optimize OPEX.
- With the convenience of controlling reactive power and operational power, adjusting grid power generation can be done without the need for direct on-site operations, saving time and transportation costs. Monitoring directly on Isolarcloud or connecting directly to the Logger through Remote Maintenance mode makes O&M tasks simpler and more convenient.
- Password and encryption for data protection ensure the security of information. With IP66 protection level and wide operating temperature range, it can directly withstand environmental impacts, enhancing safety and reliability.
- Sungrow COM100E Data Logger supports remote operation and maintenance functions, including remote firmware updates and batch parameter settings for connected devices. The integrated software allows users to monitor intelligent current on each string, perform online IV curve scans and diagnoses on the current-voltage curve. Based on advanced system and diagnosis, it accurately locates abnormal PV positions.
Specifications:
| Model | COM100E |
| Communication | |
| Maximum number of devices | 30 |
| RS485 Ports | 3 |
| Ethernet | 1 * RJ45, 10 / 100 / 1000 Mbps |
| Digital Inputs | 5, tối đa 24 VDC |
| Analog Inputs | 4, hỗ trợ 4 ~ 20 mA hoặc 0 ~ 10 VDC |
| Wireless Communication | |
| Wi-Fi Connection | 802.11 b / g / n / ac
HT20 / 40 / 80 MHz 2.4GHz / 5GHz |
| Power Supply | |
| AC Input | 100 VAC ~ 300 VAC, 50 / 60 Hz |
| Power Consumption | About 20 W, maximum 30 W |
| Night Light for Maintenance | ≤ 1 W |
| Operating Conditions | |
| Operating Temperature | 30 oC ~ 60 oC |
| Storage Temperature | – 40 oC ~ 80 oC |
| Relative Humidity | ≤ 95% (non-condensing) |
| Operating Altitude | ≤ 4.000 m |
| Protection Level | IP66 |
| Physical Specifications | |
| Dimensions (Width x Height x Depth) | 460 mm * 315 mm * 126 mm |
| Weight | 6 kg |
| Mounting Method | Wall-mounted, indoor or outdoor |
| Cabinet Material | PC |

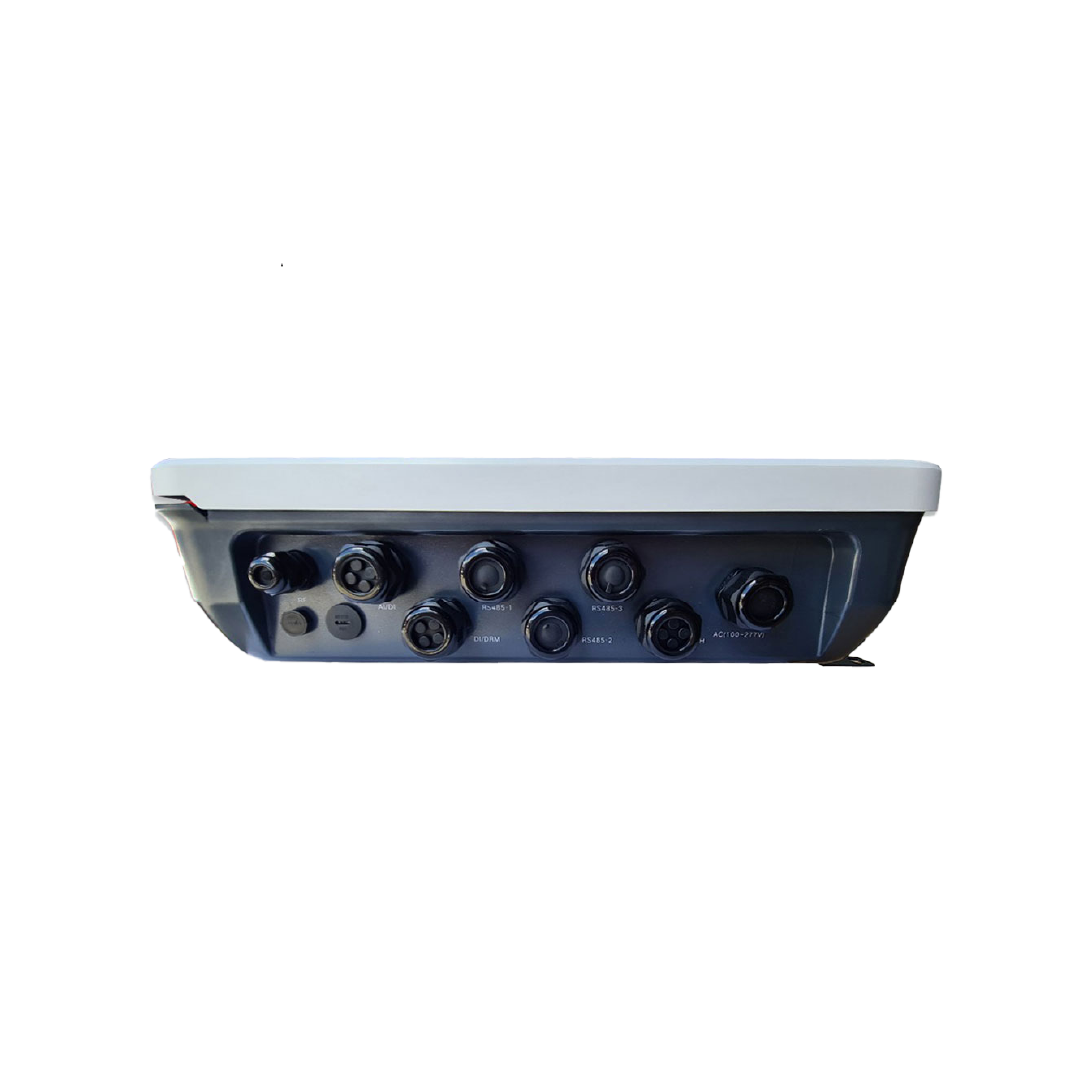

| Cable Specifications | AC Cable: Outdoor UV-resistant cable 1 ~ 1.5 mm2, outer diameter 13 ~ 18 mm
RS485 Cable: Outdoor UV-resistant twisted pair cable (STP) 0.75 ~ 1.5 mm, outer diameter 6 ~ 18 mm Ethernet: CAT5 cable, outdoor UV-resistant protective layer, outer diameter 6 ~ 18 mm AI, DI: Outdoor UV-resistant cable 1 ~ 1.5 mm2, outer diameter 3.5 ~ 6 mm |
| Ordering Information | |
| COM100E | Includes Logger1000B, AC converter, surge protector, air switch, night light.
Supports Wi-Fi wireless connection Global registration |
