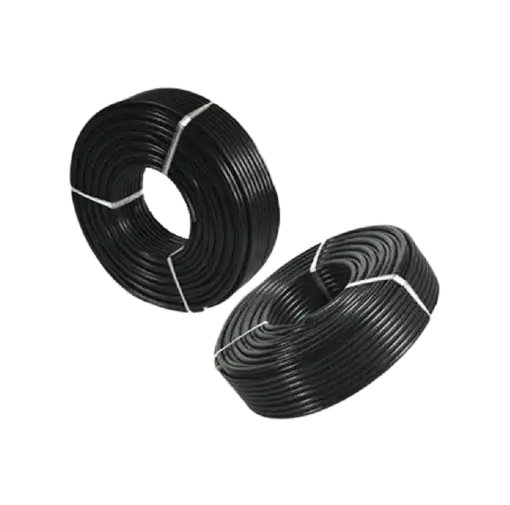

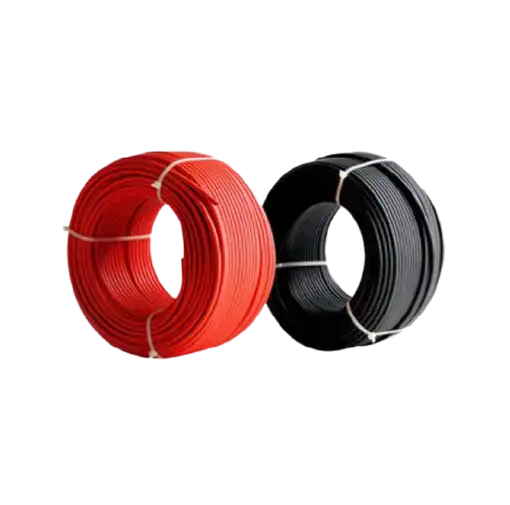

The DC 4.0mm2 solar cable is an essential component in a solar power system. In addition to its function of connecting solar panels together, the cable can also connect solar panel strings to inverters.
The LEADER DC cable is widely used due to its excellent heat resistance, UV resistance, waterproofing, and other qualities.
| Structure | H1Z2Z2-K 1×4.0mm2 |
| Rated Voltage | TUV 1500 Vdc |
| Conductor Cross-Section | 4 mm2 |
| Material | Tin-plated copper wire |
| Insulation / Jacket Material | XLPO / XLPO |
| Operating Temperature | -40℃ ~ 120℃ |
Used as DC current-carrying cables in solar power systems. With a cross-section of 6.0mm2, it features XLPO insulation and protection material suitable for harsh outdoor environments, resistant to UV rays, ozone, and hydrolysis.
| Model | H1Z2Z2-K 1×4.0mm2 |
| Standard | EN50618 |
| Conductor Cross-Section | 4mm2 |
| Conductor Material | Tin-plated Copper |
| Insulation Material | XLPO |
| Jacket Material | XLPO |
| Rated Voltage | TUV 1500 Vdc |
| Operating Temperature | -40℃ ~ 120℃ |
| Dielectric Strength | AC 6,5 kV / 5min |
| Arc Test | AC 10 kV / in air |
| Conductor Resistance | 4.89ΩKM maximum at 20℃ |
| Weather / UV Resistance | 720h, no cracking |
| Certification | IEC 60332-1-2 |
