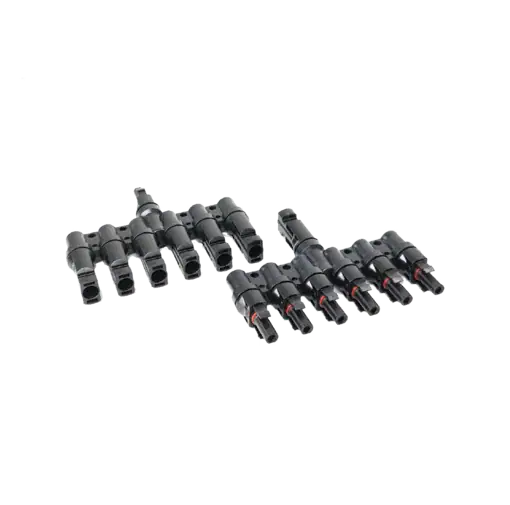

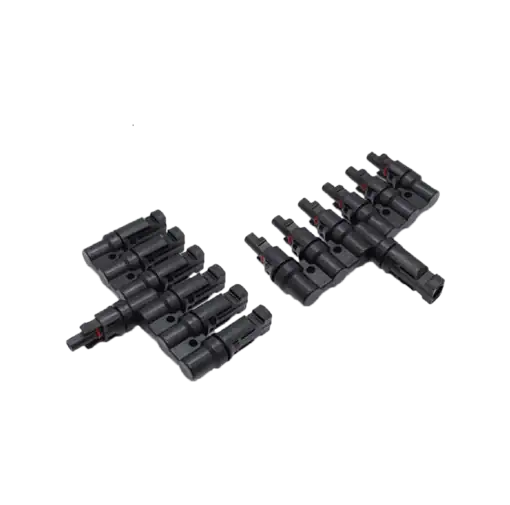

The T 1-6 LEADER connector/jack is a specialized connector for parallel connection of 6 solar panel strings, ensuring secure, safe connections with optimal electrical conductivity.
Suitable for 2.5 mm², 4 mm², and 6 mm² solar cables.
| Insulation Material | PPO |
| Rated Voltage | TUV 1000 VDC / UL 600 VDC |
| Rated Current | 20 A – 40 A |
| Connector Material | Copper with tin plating |
| Protection Level | IP67 |
| Compatible Solar Cables | 2.5/4.0 /6.0 mm² (14/12/10 AWG) |
Complies with the new 1000V standard with UL and TUV approvals. Compatible with MC4 connectors (Multi-Contact 4), suitable for 2.5 mm², 4 mm², and 6 mm² solar cables used in solar energy projects. Provides quick and reliable connections for solar cables with photovoltaic systems (solar panels, inverters).

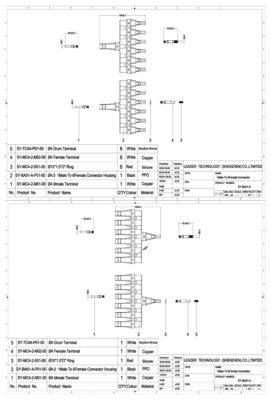

| Product Code | SY-BB61-A/B |
| Insulation Material | PPO |
| Rated Voltage | TUV 1000 VDC / UL 600 VDC |
| Rated Current | 20 A – 40 A |
| Test Voltage | 6 KV (50Hz, 1Min) |
| Connector Material | Copper with tin plating |
| Contact Resistance | Less than 0.5 mΩ |
| Protection Level | IP67 |
| Size | 4 MM |
| Compatible Solar Cables | 2.5/4.0 /6.0 mm² (14/12/10 AWG) |
