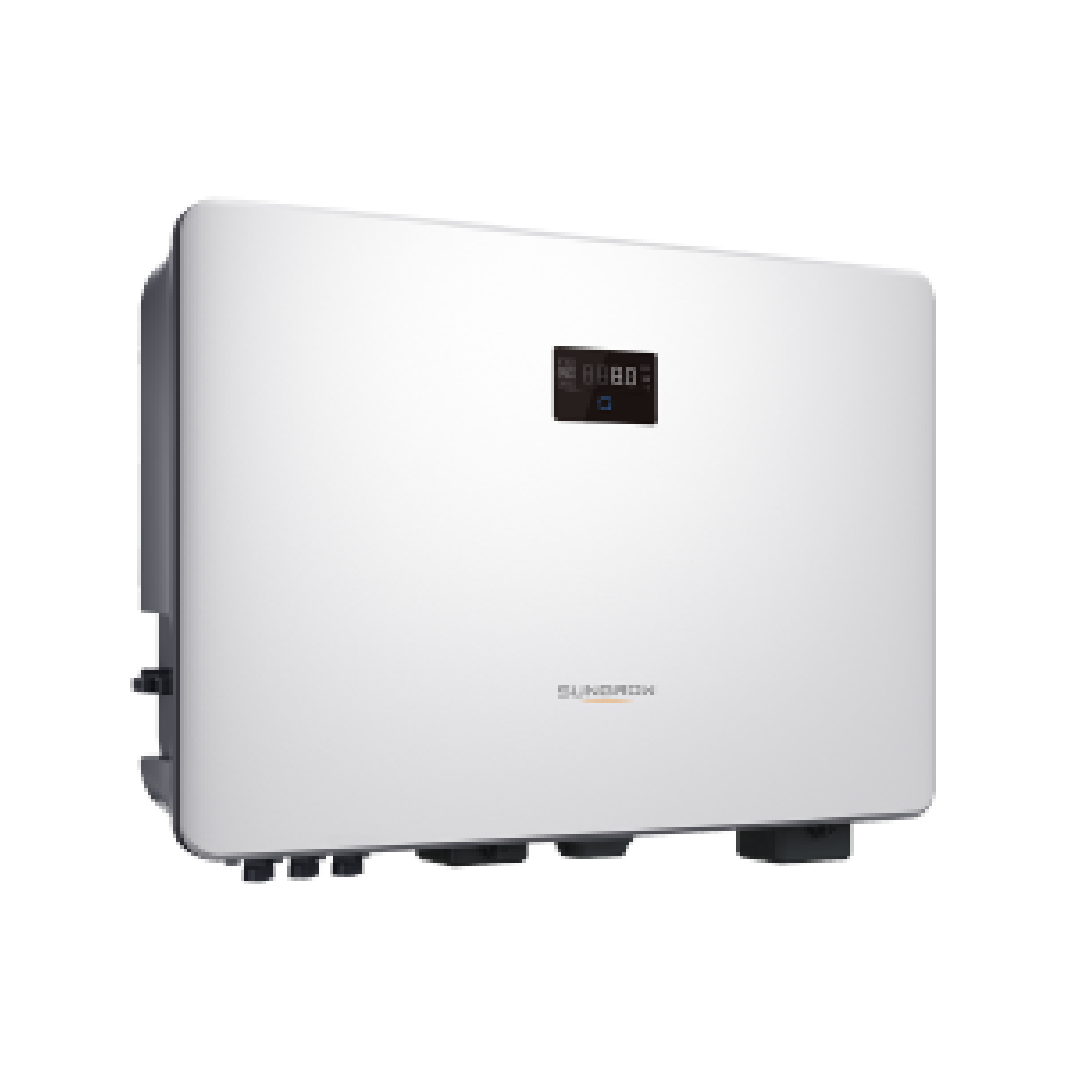

Sungrow 5kW Inverter with Energy Storage | Hyrid Inverter Sungrow SH5.0RS

Notable Upgrades:

Flexible Applications

– Wide Battery Voltage Range: 80~460 V
– Ideal for both retrofitting and new installations
– Integrated intelligent PID loss recovery function

Energy Self-Sufficiency

– Seamless transition to backup mode to ensure uninterrupted power supply
– Fast charging/discharging to enhance self-consumption efficiency
– Integrated EMS with advanced customization options

User-Friendly Setup

– Plug & Play installation
– Monitoring via iSolarCloud on both App and Web platforms
– Lightweight, compact design optimized for heat dissipation

Smart Management

– Real-time data management (every 10 seconds)
– 24/7 monitoring both online and with integrated display
– Online diagnostics and IV curve scanning

Technical Specifications:

Battery Information
Model	SH5.0RS
Input (DC)
Recommended Maximum DC Input Power	12 kWp
Maximum DC Input Voltage	600 V
Minimum DC Input Voltage / Starting Voltage	40 V / 50 V
Rated DC Input Voltage	360 V
MPP Voltage Range	40 – 560 V
Number of MPP	2
Default Number of Strings per MPPT	1
Maximum DC Input Current	32 A (16 A / 16 A)
Maximum DC Short-Circuit Current	40 A (20 A / 20 A)
Output (AC)
Maximum AC Input Current from Grid	12000 VA
Rated AC Output Power	5000 W
Maximum AC Output Power	5000 VA
Rated AC Output Current (at 230 V)	21.8 A
Maximum AC Output Current	22.8 A
Rated AC Voltage	220 / 230 / 240 V
AC Voltage Range	154 – 276 V
Rated Grid Frequency / Grid Frequency Range	50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz
Total Harmonic Distortion (THD)	< 3 % (at rated power)
Power Factor at Rated Power / Adjustable Power Factor	> 0.99 / 0.8 leading to 0.8 lagging
Number of Phases Connected:	1 / 1
Efficiency
Maximum efficiency	97.9 %
European efficiency	97.3 %
Protection
Grid monitoring	Yes
Reverse polarity protection (DC)	Yes
Short circuit protection (AC)	Yes
Ground fault protection	Yes
Surge protection	DC Type II / AC Type II
DC switch (Solar)	Yes
DC Fuse (Battery)	Yes
PID recovery function	Yes
Reverse Polarity Protection for Battery	Yes
Battery Type	Li-ion
Battery Voltage	80V – 460V
Maximum Charging/Discharging Current	30A / 30A
Maximum Charging/Discharging Power	6600W
General Information
Dimensions (WHD)	490 * 340* 170 mm
Weight	18.5 kg
Installation Method	Wall-mounted
Isolation Method (solar/battery storage)	Transformerless/Transformerless
Ingress Protection Rating	IP65
Operating Temperature Range	-25 – 60 ℃
Allowable Relative Humidity Range (non-condensing)	0 – 100 %
Cooling Method	Natural cooling
Maximum Operating Altitude	4000 m
Display	Digital LED display & LED indicator display
Communication	Ethernet / WLAN / RS485 / CAN
DI/DO	DI * 4 / DO * 1 / DRM
DC Connection Type	MC4 (PV) / Sunclix (Battery)
AC Connection Type	Plug & Play
Certifications	IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-3-11, IEC/EN 61000-3-12, EN 62477-1, AS/NZS 4777.2, EN 50549-1, CEI 0-21, G98 / G99
Backup Power Mode (On Grid)
Rated Output Power for Backup Load	6000 W
Rated Output Current for Backup Load	27.3 A
Backup Power Mode (Off Grid)
Rated Voltage	220 V / 230 V / 240 V (±2 %)
Frequency Range	50 Hz / 60 Hz (±0.2 %)
Total Harmonic Distortion for Linear Load	<2%
Switching Time to Backup Mode	<10 ms
Rated Output Power	5000 W / 5000 VA
Maximum Output Power	8400 VA, 10s
